Chequered Plate – Tread Plates

Chequered Plate (Tread Plate)

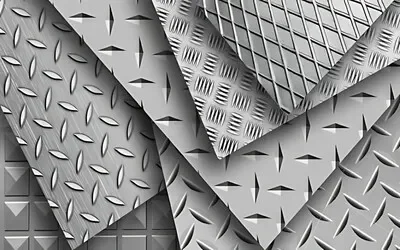

A chequered plate is a metal sheet with raised surface patterns—typically diamond, tear drop, or checker designs—offering improved grip and structural reinforcement. The patterns not only enhance traction but also add strength without significant weight gain.

These plates are widely used in both structural and decorative applications across construction, automotive, shipbuilding, and manufacturing industries. Chequered plates, also known as tread plates, checker plates, or floor plates, are engineered steel or aluminum sheets with embossed patterns that provide excellent anti-slip properties. These plates are commonly used in walkways, stair treads, truck beds, industrial flooring, and other environments where slip resistance is essential.

Chequered Plate Thickness, Chequered Plate Weight Chart and Sizes

THICKNESS (MM)DIMENSIONS (MM)WEIGHT (KG)
2/3 MM1000X2000 MM42,00 KG
2/3 MM1250X2500 MM63,00 KG
2/3 MM1500X3000 MM90,00 KG
3/4 MM1000X2000 MM54,00 KG
3/4 MM1250X2500 MM87,00 KG
3/4 MM1500X3000 MM126,00 KG
4/5 MM1000X2000 MM68,00 KG
4/5 MM1250X2500 MM113,00 KG
4/5 MM1500X3000 MM162,00 KG
5/6 MM1000X2000 MM87,00 KG
5/6 MM1250X2500 MM138,00 KG
5/6 MM1500X3000 MM198,00 KG

Tread Plate, Steel Chequered Plate, Mild Steel Chequered Plate, Galvanized Chequered Plate, Hot Rolled Chequered Plate

Tread plates are widely favored across diverse industries due to their functional and mechanical advantages. Here are some of the most common application areas:

Industrial Stair Treads and Walkways
The anti-slip properties of chequered plates make them ideal for manufacturing industrial staircases, platforms, and catwalks in factories, warehouses, and production facilities. The raised pattern provides extra grip, reducing the risk of accidents in high-traffic areas.

Transportation and Vehicles
Tread plates are extensively used in the construction of truck beds, trailers, and loading ramps. Their durable, impact-resistant surface can withstand heavy-duty operations and constant wear, making them indispensable in the transport sector.

Marine and Shipbuilding
Ships and marine vessels utilize chequered plates on decks, walkways, and gangways where moisture and slippery conditions are common. The embossed surface ensures crew safety and adds structural reinforcement to ship components.

Construction and Architecture
Beyond functional use, chequered plates are increasingly incorporated into architectural designs. From decorative wall panels to flooring solutions in commercial buildings, these plates add both visual appeal and practical benefits.

Machinery and Industrial Equipment
Machine bases, protective covers, and platforms in manufacturing plants frequently use chequered plates for their robustness and ease of maintenance.

Common Types of Chequered Plates

  • Steel Chequered Plate: Durable and heavy-duty; ideal for industrial floors, machine platforms, and staircases.

  • Mild Steel Chequered Plate: Cost-effective and easy to weld; perfect for general-purpose use.

  • Galvanized Chequered Plate: Coated for corrosion resistance; suitable for outdoor and marine environments.

  • Aluminum Chequered Plate: Lightweight and corrosion-resistant; commonly used in transport vehicles and architectural features.

  • Hot Rolled Chequered Plate: Smooth finish and superior mechanical properties due to controlled rolling process.

Superior Quality, Versatile Applications, and Unmatched Durability

Also known as tread plates, are highly durable steel sheets embossed with a regular pattern of raised diamonds or lines on one side. This textured surface not only enhances the plate’s aesthetic appeal but, more importantly, provides excellent anti-slip properties, making it an essential material across various industrial, architectural, and transportation sectors.

Manufactured in top-grade materials such as ST37 and S235JR, tread plates are engineered to meet both local and international quality standards. With thicknesses ranging from 1.50 mm to 10.00 mm, widths between 1000 mm and 1500 mm, and customizable lengths up to 6000 mm, these plates can be tailored precisely to meet specific project requirements. Whether you need standard sizes or custom cuts, tread plates deliver unmatched versatility and performance.

Advantages of Using

  • Anti-Slip Performance: The raised patterns significantly reduce the risk of slips and falls, especially in wet or oily environments.

  • High Load-Bearing Capacity: Despite their lightweight construction, checker plates provide exceptional strength, capable of handling substantial weights without deformation.

  • Versatile Customization: Available in various thicknesses, sizes, and finishes, checker plates can be customized for virtually any application.

  • Corrosion Resistance: When manufactured with galvanized or stainless steel options, these plates offer superior resistance to rust, extending their lifespan in harsh environments.

  • Easy Fabrication: The materials used allow for seamless cutting, welding, and bending, ensuring effortless integration into different projects.

Why Choose Us for Your Chequered Plate Needs?

With years of expertise in the steel and metal industry, we take pride in delivering checker plates of the highest quality, backed by rigorous quality control processes. Our team offers:

  • Competitive pricing tailored to bulk and small orders

  • Fast delivery schedules, ensuring you meet project deadlines

  • Expert consultation on material selection and specifications

  • Custom cutting and finishing services to match precise requirements

By choosing us, you secure a reliable partner committed to helping your projects succeed with durable, high-performance steel solutions.

HL Metal: Your Trusted Chequered Plate Supplier

Refer to the technical table above for common thicknesses, sheet sizes, weight per m², and available surface patterns. If you require a specific thickness or dimension, our engineering team can assist with custom production. Contact our sales team today for detailed product information, price quotations, and expert advice on the best solutions for your needs. Let us help you elevate the safety, durability, and efficiency of your operations.

Technical Specifications

Thickness (mm)Sheet Size (mm)Weight (kg/m²)Surface Pattern
2.51000 × 200020.0Tear Drop
3.01250 × 250024.0Diamond
4.01500 × 300032.0Diamond
5.01500 × 600040.0Tear Drop
6.02000 × 600048.0Checker

At HL Metal, we stock and export a wide range of chequered floor plates in multiple sizes, patterns, and materials. Whether you need diamond tread plate for construction or embossed steel plate for marine projects, we deliver high-quality solutions tailored to your needs.

We supply both standard and custom sizes, with fast lead times and FOB pricing from our nearest seaport. Our plates meet international quality standards and can be accompanied by mill test certificates, origin documents, and surface treatment options.

Refer to the technical table above for common thicknesses, sheet sizes, weight per m², and available surface patterns. If you require a specific thickness or dimension, our engineering team can assist with custom production.
